Database

Types of databases

Characteristic	Relational	Non-relational	Graph
Representation	Multiple tables, each containing columns and rows	Collection of documents Single table with keys and values	Collections of nodes and relationships
Data design	Normalized relational or dimensional data warehouse.	Denormalized document, wide column or key value	Denormalized entity relationship
Optimized	Optimized for storage	Optimized for compute	Optimized for relationships
Query style	Language: SQL	Language: many Uses object querying	Language: many Uses object querying
Scaling	Scale vertically	Scale horizontally	Hybrid
Implementation	OLTP business systems, OLAP data warehouse	OLTP web/mobile apps	OLTP web/mobile apps

Data models describes how data is represented.

= A relational model organizes data into one or more tables (or "relations") of columns and rows, with a unique key identifying each row.
Rows are also called records or tuples. Columns are also called attributes.
Generally, each table/relation represents one "entity type" (such as customer or product). The rows represent instances of that type of entity (such as "Lee" or "chair") and the columns representing values attributed to that instance (such as address or price).

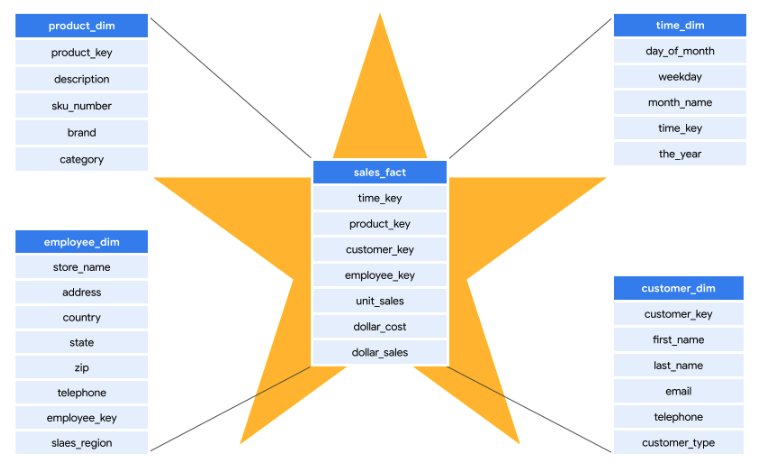

Star schemas
- A schema consisting of one or more fact table that references any number of dimension tables

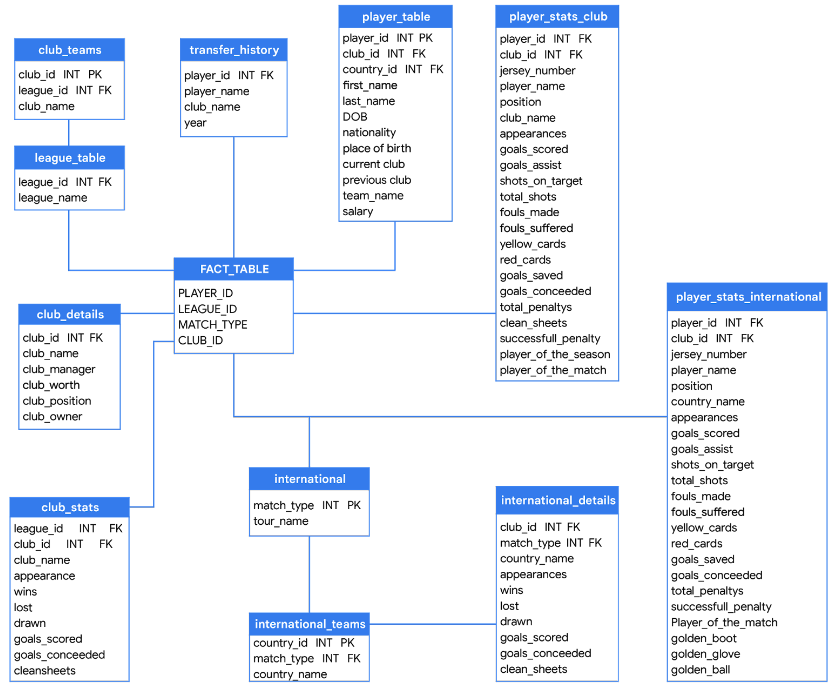

Snowflake schemas
- An extension of a star schema with additional dimensions and often sub-dimensions

Schema is a way of describing how something such as data is organized.

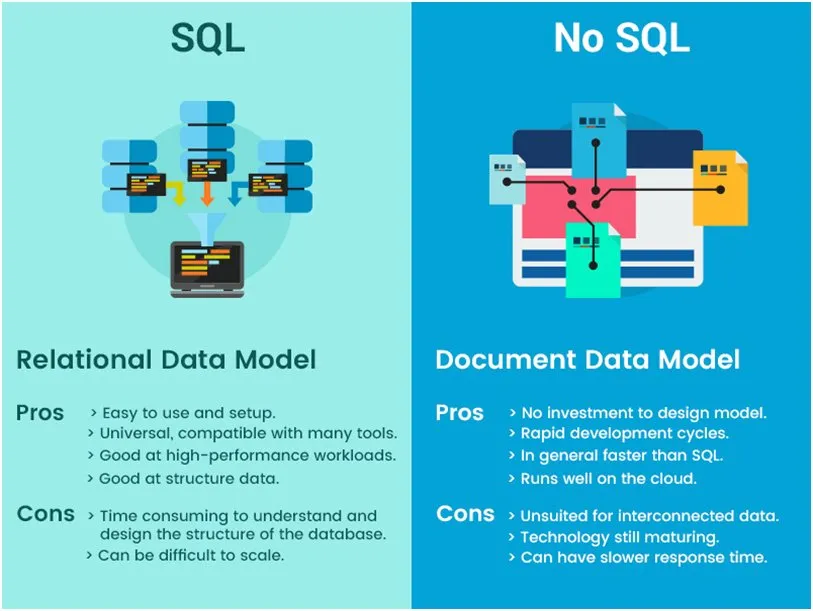

SQL vs. No SQL

Typically, there are two types of workloads that databases are optimized for, transactional processing and analytical processing:

often called operational databases
databases that have been optimized for data processing (for data entry purposes)
transactional databases
- ACID criteria = Atomicity, Consistency, Isolation, Durability
- BASE criteria = Basically Available, Soft state, and Eventual consistency

generated from data in other databases and are often called data warehouses
databases that have been primarily optimized for analysis (for data retrieval purposes)

However, both the terms OLTP and OLAP have become outdated.

	Row-based indexes	Columnar indexes
Storage on disk	Row by row	Column by column
Read/write	Best at random reads and writes	Best at sequential reads and writes
Best for	Returning full rows of data based on a key	Returning aggregations of column values
Implementation	Transactional systems	Analytical processing
Data compression	Low to medium compression can be achieved	High compression is the norm

Distributed/Single-homed databases
- Distributed databases are collections of data systems distributed across multiple physical locations.
- Single-homed databases are databases where all of the data is stored in the same physical location.
Separated storage and computing systems
- databases where less relevant data is stored remotely, and relevant data is stored locally for analysis.
Combined systems
- database systems that store and analyze data in the same place.

Workload
- = the combination of transactions, queries, data warehousing analysis, and system commands being processed by the database system at any given time.
Throughput
- = the overall capability of the database's hardware and software to process requests.
Resource
- = the hardware and software tools available for the database
Optimization
- = Maximizing the speed and efficiency with which data is retrieved in order to ensure high levels of database performance.
- optimization for data reading
  - indexing, partitioning, caching
  - queries
    - Consider the business requirements
    - Avoid using SELECT* and SELECT DISTINCT: Using SELECT* and SELECT DISTINCT causes the database to have to parse through a lot of unnecessary data. Instead, you can optimize queries by selecting specific fields whenever possible.
    - Use INNER JOIN instead of subqueries
Contention
- Contention occurs when two or more components attempt to use a single resource in a conflicting way.

There are two methods that databases implement for consistency: ACID and BASE.

= a method for maintaining consistency and integrity in a structured database

= a method for maintaining consistency and integrity in a structured or semistructured database

ACID compliance	BASE compliance
Strong consistency	Weak consistency – stale data is OK
Isolation is key	Availability is key
Focus on committed results	Best effort results
Conservative (pessimistic) availability	Aggressive (optimistic) availability
